RORO Equipment

Guides and Resources


42′ Flatbed Trailer

DIMENSIONSLENGTH
42′ (12,802 mm)
WIDTH
8′ (2,428 mm)
PAYLOADGROSS WEIGHT
80,000lbs. (36,287 kg)
TARE
10,050lbs. (4,762 mm)

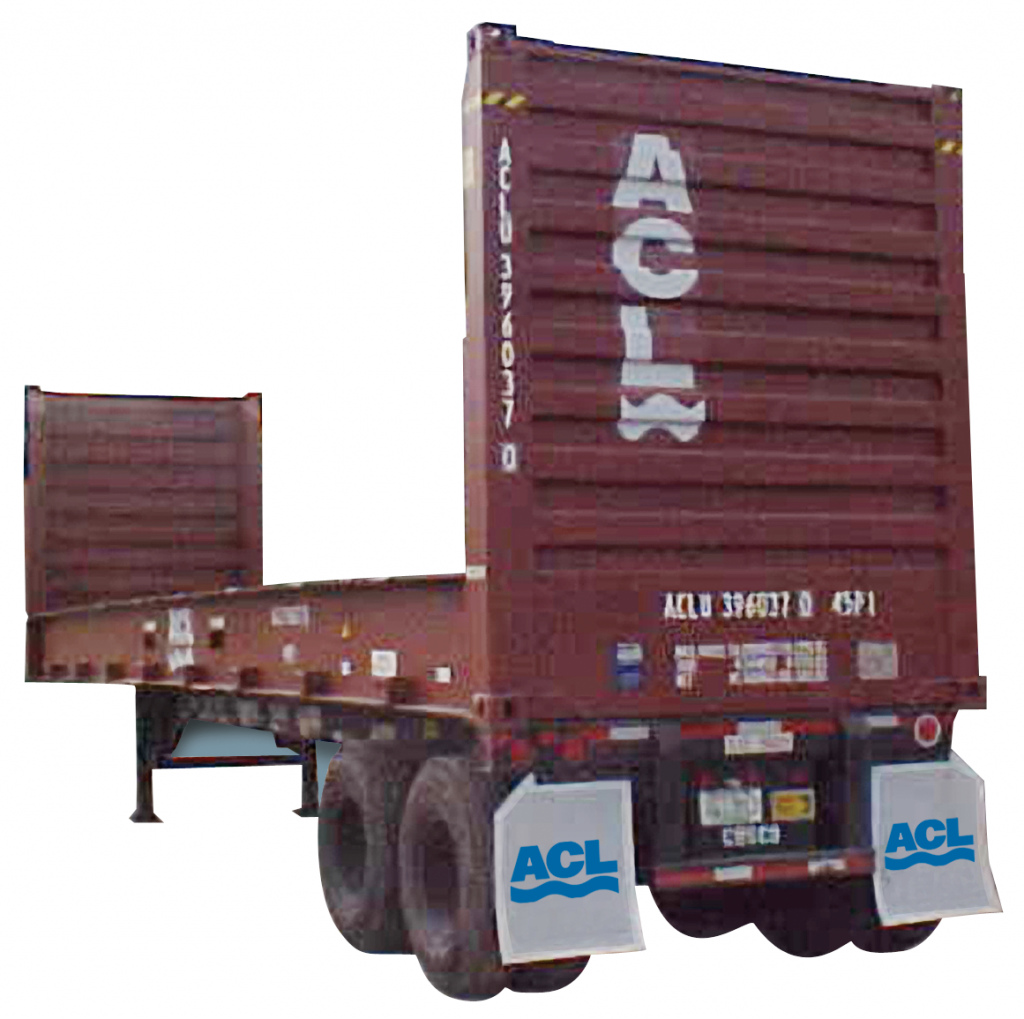

40′ Flatracks

DIMENSIONSLENGTH
40′ (12,202 mm)
WIDTH
8′ (2,438 mm)
HEIGHT
9’6″ (2,896 mm)
INTERNAL DIMENSIONSLength Between Headboards
38’9″ (11,642 mm)
Length Between Corner Posts
38’4″ (11,582 mm)
Width Overall Deck
7’9″ (2,374 mm)
Height
7’5 9/64″ (2,264 mm)
PAYLOADGROSS WEIGHT
110,231 lbs. (50,000 kg)
TARE
9,921 lbs. (4,500 kg)

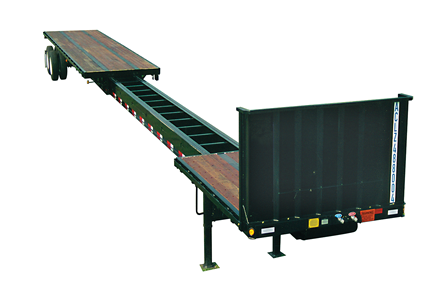

48′-80′ Extendible Flatbed Trailer

DIMENSIONSLENGTH CLOSED
48′
(14,630 mm)
LENGTH OPENED
80′
(24,384 mm)
PAYLOADGROSS WEIGHT
80,000 lbs.
(36,287 kg)
TARE
16,500 lbs.
(7,484 kg)

Roll Trailers

LENGTHMAXIMUM PAYLOAD
20′20-60 tons
30″70-160 tons
40′80-130 tons
50′90-100 tons
60′60-120 tons
62’*62-100 tons
80′120-150 tons
*Units have fixed rail systems and are specialized for rail equipment

Heavy Duty Drawbar Roll Trailer

LENGTHMAXIMUM PAYLOAD
26′170 tons
42′220 tons
